Write about Computer Languages/Programming languages

Computer Languages/Programming languages

All computer programming languages fit into four general categories :

1. Machine Language
2. Assembly Language
3. High Level Language
4. Fourth Generation Language

1. Machine Language

Although   computers   can  be programmed    to  understand many  different   computer languages,   every  computer understands  only one language  without  using  a translation program. This  language  is called  machine  language  of the  computer.   The  machine   language   computer   is  written  normally   as  strings   of  binary   1s  and  0s. The circuitry  of a computer  is wired  in a manner  that  it recognizes  the machine  language  instructions immediately and converts  them into  electrical   signals  needed  to execute  them.

A machine  language  instruction  normally  has a two-part  format  . The first part  is operation    code that tells  the computer  what function  to perform and   the second  part is operand  that tells where  to find or store the data to be manipulated.  Hence,  each  instruction  tells the computer  what  operation  to perform  and the length  and locations  of  the  data  fields  involved   in  the  operation.   Every  computer   has  a set  of  operation   codes  called  its instruction   set.  Each  operation     code  (or  opcode)   in  the  instruction   set  is  meant   to  perform   a  specific   basic operation  or function.  Typical  operations   included  in the instruction  set of a computer  are:

• Arithmetic operations
• Logical operations
• Branch  operations   (either  conditional   or unconditional)   for transfer  of control  to the address  given  in the operand  field.

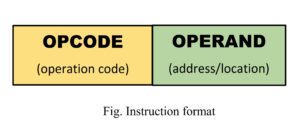

Figure shows  a typical  single-address    machine   language  instruction.   Although   some  computers   use  only single-address      instructions,   many  computers   use  multiple-address    instructions   that  include  addresses   of two  or more operands.  For example,  augend  and addend  may be the two operands  of an addition  operation.

All  computers  use binary  digits  (0s and  1s) for  performing  internal  operations.   Hence,  most  computers’   machine language  instructions   consist  of strings  of binary  numbers.  For example,  a typical  program  instruction  to print  a number  on a printer  might be :

101100111111101100010000011111010

Machine Language programs have an advantage of very fast execution speeds and efficient use of primary memory. Use of this language is very difficult and time consuming method of programming. This language is said to be a low level language.

2. Assembly Language

Assembly language falls in between machine language and high level language. They are similar to machine language, but easier to program in, because they allow the programmer to substitute names for numbers. The language uses mnemonics in place of 0s and 1s to represent the operation codes. The word mnemonic means refers to a memory aid. Assembly language programming was introduced in 1952 and helped in overcoming limitations of machine language programming by using alphanumeric mnemonic codes. For example, using ADD instead of 110 to add and SUB to subtract instead of 1111. It allows addresses of fixed storage locations to be represented by alphanumeric names instead of numeric addresses. For example memory location 1111, 1010 and 1001 may be represented as FRST, SCND, RSAN respectively in an assembly language program. With this feature, a programmer can remember easily and use the sorage location of the data nad instructions used in an assembly language program. It also provides additional instructions called pseudo-instructions, in the instructions set for instructing the system how we want the program to be assembled in the computer’s memory.

Although assembly language save time and reduce errors and find errors easily they have certain limitations:

i. Coding in this language is time consuming.

ii. This language is machine oriented i.e. they are designed for the specific make and model of processor being used.

Advantages of Assembly Language over Machine Language

i. Easier  to understand   and  use

Due  to  the  use  of  mnemonics   instead  of  numeric   op-codes   and symbolic   names  for  data  locations   instead  of  numeric  addresses,   assembly   language  programs   are much easier to understand  and use than machine  language  programs.

ii. Easier    to locate and correct  errors

Due to the use of mnemonic  op-codes  and symbolic names for data  locations  and also because  programmers   need  not keep track    of storage  locations  of the data and  instructions,   fewer  errors  are made  while  writing  programs  in assembly     language,  and those  that  are made  are easier to find and correct.  Additionally,   assemblers  automatically   detect  and indicate  errors for  use  of an  invalid  mnemonic   op-code  or  a name  that  has  not  been  defined.  For  example,   let us assume  that  an  assembly   language  program   instruction   reads  ADD  AREA  and we  forget  to define AREA  in the  program.  The  assembler   will  look  through  its table  and  not  finding  AREA  in it will indicate the error.

iii. Easier  to modify

Since  they  are  easier  to  understand,   it is easier  to  locate,  correct,   and  modify instructions  of an assembly  language  program  than a machine  language  program.  Moreover,  insertion or  removal  of  certain  instructions   in a program   does  not  require  change  in the  address  part  of the instructions  following  that part of the program.  This is required  in case of machine  language.

iv. No worry about addresses

An important  advantage  of assembly  language  is that programmers  need not keep  track  of  storage   locations   of  data  and  instructions   while  writing   an  assembly   language program.   For  example,   let  us  assume   that  we  have   written   a  long  machine   language program involving   many  instructions   and  several  references   to  itself  within  the  program   such  as  looping, branching,  and so on. At the very end, we suddenly  discover  that we have left out an instruction  in the middle.   If we  insert  that  instruction,   we  will  have  to  go through  the  entire  program  to  check  and modify  (if necessary)  all references  to other  instructions.   This  is certainly  a tedious job.  However,  if we  write  the  same  program   in  assembly   language,   we  merely   add  the  extra  instruction,   and  the assembler  will take care of suitably  modifying  the references  automatically.

v. Easily relocatable

The  availability   of   pseudo-instructions   for instructing  the  system  how we want the  program   to  be  assembled   inside  the  computer’s memory   makes  assembly   language  programs easily  relocatable   because  their  location  can  be easily changed   by  suitably  changing  the  pseudo- instructions.  This  is not possible easily   with machine  language  programming.

vi. Efficiency of machine language

An assembly   language  program  also  enjoys  the  efficiency   of  its corresponding        machine   language  program because there      is one-to-one correspondence     between  the instructions   of an assembly  language  program  and  its corresponding   machine  language   program.  In other  words,  an assembly  language  program  will  be just  as long  as the resulting   machine   language program.  Hence,  leaving  out the translation  time required  by the assembler,  the  actual  execution  time for   an   assembly    language    program    and   its   equivalent    machine    language    program    (written independently)   would  be the same.

Limitations  of Assembly  Language

Following  limitations  of machine  language  are not solved by using assembly  language:

i. Machine dependent

Since  each  instruction   of  an  assembly   language  program   is translated   into    exactly  one machine  language  instruction,  assembly  language  programs  are machine  dependent.  That

is, assembly  languages  differ  from computer  to computer,  and an assembly  language  program  can be executed  only on the computer  in whose  assembly  language  it has been  written.  Hence,  a decision  to change   to  another   computer   will  require  learning   a new  language   and  conversion   of  all  existing programs  into assembly  language  of the new computer.

ii. Knowledge of hardware required

Since assembly  languages  are machine  dependent,  an assembly language   programmer   must  have  a good  knowledge   of  the  characteristics    and  logical  structure  of hislher computer  to write good assembly  language  programs.

iii. Machine level coding

In case of an assembly  language,  instructions   are still written  at the machine- code   level.  That  is,  one  assembly   language   instruction   is  substituted   for  one  machine   language instruction.   Hence,   like  machine   language  programs,   writing   assembly   language   programs   is  also time-consuming   and difficult.

Due to their limitations machine and assembly level languages are often refered to as low level programming.

Assembler

A computer  can directly  execute  only  machine  language  programs  that  use numbers  for representing   instructions and  storage  locations.   Hence,  an assembly   language  program   must  be converted  (translated)   into  its equivalent machine  language  program  before  it can be executed  on the computer.  This  translation  is done with the help of a translator   program   called   assembler.  Assembler is a software   supplied   by  computer   manufacturers.    It translates  an assembly  language  program  into its equivalent machine  language  program    It is so called  because  in addition  to translating,   it also  assembles   the machine    language  program  in main  memory  of the computer,  and makes  it ready for execution.

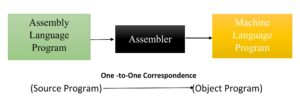

The following figure shows   the  process   of  translating   an  assembly   language   program   into  its  equivalent   machine language  program  by using  an assembler.   As the figure  shows,  input  to the assembler   is the assembly   language program  (often, referred  to as source program),  and  its output  is the machine language  program  (often  referred  to as object program). Since the assembler  translates  each assembly  language  instruction  into an equivalent  machine language  instruction,  there  is a one-to-one  correspondence   between  the assembly  language  instructions  of a source program  and the  machine  language  instructions  of its equivalent   object  program.  Note  that  during  the process  of translation   of  a source  program   into  its equivalent   object  program   by the  assembler,  the  source  program   is not under  execution.  It is only converted  into a form that can be executed  by the computer.

4. High Level Language

These are languages whose instructions closely resemble human language and mathematical notation. Unlike assembly language, programs made in this language may be used with different makes of computers with little modification . Other advantages of high level languages are :

i. Easier to learn

ii. Required less time to write

iii. Provides better documentation

iv. Easier to maintain

As a result, high level language are used more often than machine or assembly languages. High level languages must also be translated into machine language before they can be used by computer. One of the two different language translator programs is used to translate high level languages: an interpreter or a compiler.

Few high level languages being used now a days are:

Logo, Ada, C, PASCAL, BASIC (Beginner’s All Purpose Symbolic Instruction Code), FORTAN (Formula Translator), COBOL (Common Business Oriented Language), PL/1 (Programming Language/ One), RPG (Report Program Generator, ALGOL (Algorithm Language).

Limitations of High Level Languages

i. Lower   efficiency

Generally, a program  written  in a high-level   language  has  lower  efficiency  than one  written  in a machine/assembly    language  to do the  same job.  That  is, programs  written  in high- level  languages   result in    multiple machine  language  instructions that  may  not  be optimized,   taking more time  to execute  and requiring  more main  memory    Hence,  when a program’s   efficiency  is important,      its  performance    critical   parts  are  written   in  assembly   language   and  non-critical   parts are written  in a high-level  language,  However,  with  the advent  of efficient  and optimizing  compilers this problem  is now becoming  a non-issue.

ii. Less flexibility

Generally,   high-level   languages  are  less flexible  than  assembly   languages   because they  do  not  normally   have  instructions   or  mechanism   to  control  a computer’s    CPU,  memory,  and registers.  An  assembly   language  provides  the  programmers   access  to  all  the  special  features  of the machine  they  are using certain  types  of operations   that  are easily  programmed   using  the machine’s assembly   language  are  impractical   to  attempt   using  a high-level   language.   This  lack  of  flexibility means  that  some  tasks  cannot   be  done  or  can  be  done  only  with  great  difficulty   in  a  high-level language.

Compiler

A complier translates a whole program (source coded) at once into machine language (object code) and then it can be immediately executed anytime thereafter. The source code remains intact and can be updated and then recompiled again into object code. Hence, a compiler is a translator program that translates a high level language program into its equivalent machine language program. A compiler is so called because it compiles a set of machine language instructions for every program instruction of a high level language.

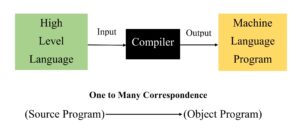

The following figure shows the process of translating a high level language into its equivalent machine language program using a compiler. As the figure  shows, input to the compiler  IS the high-level  language  program (often  referred  to as source program),   and its output is the machine  language program .   Since  high-level  language   instructions are macro  instructions,  the compiler  translates   each high-level language instruction  into a set of machine level language instructions rather than a single machine language instruction. Hence there  is one to many correspondence between the high level language instructions of a source program and the machine language instructions of its equivalent object program. Note that during the process of translation of a source program into its equivalent object program by the compiler, the source program is not under execution. It is only converted  into a form that can be executed  by the computer.

Interpreter

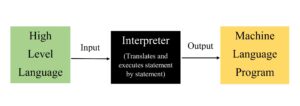

An interpreter is a translator which translates a program into machine language one line at a time and executes line of the program after it is translated The machine readable form of program is not stored on any storage and therefore, the program must be interpreted each time before it is executed. Therefore, in case of an interpreter, the translation and execution processes alternate for each statement encountered in high level language program. This differs from a compiler and merely translates the entire source program into an object program and is not involved in its execution. After  compilation   of a source  program,  the  resulting  object  program  is saved  permanently   for future  use, and  is used every time the program  is to be executed.  Hence,  repeated  compilation   (translation  of the source  code)  is not necessary   for  repeated  execution   of  a program.   However,   in case  of an  interpreter,   since  no object  program   is saved  for future  use, repeated  interpretation   (translation  plus execution)  of a program  is necessary  for its repeated execution.

As compared  to compilers,  interpreters  are easier to write because  they are less complex  programs  than compilers. They also require  less memory  space for execution  than compilers  require.

The main  advantage  of  interpreters  over  compilers   is that  a syntax  error  in a program  statement  is detected  and brought  to  the  attention   of  the  programmer   as  soon  as  the  program   statement   is  interpreted.

5. Fourth Generation Languages (4GL)

The machine, assembly and high level languages are given ‘generation’ designation by some people in the computer field. Machine languages are considered first generation, assembly languages are second generation and high level languages are third generation languages. Fourth generation languages are those which allow users to create programs with  much less effort  than what is required by other languages.

Examples include – Prolog, SQL, MySQL etc.

Important Points

• PASCAL programming language was designed by Niklaus Wirth in 1971.
• FORTAN was developed by a team of programmers by IB led by John Backus in 1957.
• BASIC was designed by John G. Kemeny and Thomas E. Kurtz in 1964
• The initial work on the design of COBOL was stated in 1959 under the leadership of Grace Hopper.
• C language was developed in 1972 at AT and T’s bell laboratories, USA by Dennis Ritchie and Brain Kernighan. A new version of C++ was developed by Bjarne Stroustrup at Bell Labs in the early 10980s.
• Java another high level language was developed by a team led by James Gosling. The language was formaly announced in May 1995 and its first commercial release was made in early 1996. Java uses the concept of just in time complilation.
• RPG another high level language which stands for Report Program Generator. IBM developed the language and launched in 1961 for use on the IBM 1401 computer.
• SNOBOL stands for String Oriented Symbolic Language. It is another language for non numeric applications.
• LISP stands for List     It was developed  in  1959 by John  McCarthy   of MIT. His goal was to develop  a language  that  is good at manipulating   non-numeric  data  such  as symbols  and strings  of text.  Such data  handling capability  is needed  in compiler  development,   and in Artificial  Intelligence  (AI) applications.
